DIAMOND ANTENNA CORPORATION

A1430S8: BEAM ANTENNA

Size:Approx. 1400x1030x50(mm)
Turning radius:1.35m
Weight:1.2kg
Frequency:144-146/430-440MHz (2m/70cm) Gain:9.0dBi (144MHz), 10.0dBi (430MHz)
Max. power rating:100W (FM)
Impedance:50Ω
Connector:M-J
Mast diameter Accepted:φ38-φ61mm
Type:3-elements beam antenna (144MHz) / 5-elements beam antenna (430MHz)

CPATU: ELEMENT FOR EXTERNAL AUTOMATIC ANTENNA TUNER FOR WIRE

Length:4.6m / Weight: 2.5kg
Frequency:3.5-50MHz（correspondence:10/18/24MHz）
Max. power rating:300W SSB
Rated wind velocity:40m/sec.
Mast diameter Accepted:φ30-φ62mm
Compatible tuner:AH-4, AH-705, AH-730, FC-40, FC-800, CG3000 etc.

Frequency range and max. power rating are depending on the external automatic antenna tuner used.

This product cannot be used with the antenna tuner in the transceiver and manual antenna tuner.

We recommend to use the below product with the CPATU.
TMB, DAP600, IVES10

P610L: Mobile Communication Speaker

Dimensions:75Wx69Hx31Dmm
Speaker:57mm 80ohms
Max.input:5W
Magnet bracket and DC cable 5m with 3.5mm plug are included
Cord:3m with 3.5φ straight plug

NR760HB: 144/430MHz(2m/70cm)

Length:0.8m / Weight:200g
Gain:2.15dBi(144MHz),5.2dBi(430MHz)
Max.power rating:150W FM(Total)
Impedance:50ohms
VSWR:Less than 1.5:1
Connector:MP
Type:1/2wave radialless(144MHz),2x5/8wave radialless(430MHz)

SRJ805S: 144/430/1200MHz (2m/70cm/23cm)
120/150/300/450/800/900MHz receiving only

Length:4.5cm
Weight:15g
Max Power rating: 10W / Connector:SMA-J

W719: Dual Band Wire Dipole Antenna

Frequency: 1.9MHz / 7MHz (160m / 40m)
Length:Approx. 30m
Weight:Approx. 2kg
Max.power rating: 1.2kW (PEP)
SWR:　Less than 1.5 (at resonance frequency)
Impedance: 50Ω
Connector: M (UHF connector)

RHM12: Portable Screwdriver Type Antenna

Length:Approx. 0.6-2.75m / Weight:Approx. 350g
Frequency:(1.9/3.5MHz)* 7-430MHz *with optional coil
Impedance:50ohms
Connector:M-P
Type: 1/4wave (1.9-50MHz), 5/8wave (144/430MHz band)
Max. Power rating: 120W(SSB). 40W(FM/CW)

RHMC12: Optional coil for RHM12

Frequency:　(1.9/3.5MHz)

FDV-11,FDV-12,FDV-14: Folded Dipole Antenna(138 to 174MHz)

FDV-11

Dimensions (HxD):0.86 x 0.91m / Weight:1.8kg
Gain:1 to 2.5dBd / Max.power rating:500W / Impedance: 50Ω
SWR:Less than 1.5 / connector:NP / Rated wind velocity:70m/sec.
Mast diameter Accepted:φ30-φ62

FDV-12

FDV-14

Dimensions (HxD):4.95 x 0.91m / Weight:8.5kg
Gain:6 to 9dBd / Max.power rating:500W / Impedance: 50Ω
SWR:Less than 1.5 / connector:NJ / Rated wind velocity:70m/sec.
Mast diameter Accepted:φ30-φ62

FDU-31,FDU-32,FDU-34:Folded Dipole Antenna(406 to 512MHz)

FDU-31

Dimensions (HxD):0.33 x 0.91m / Weight:2.27kg
Gain:1 to 2.5dBd / Max.power rating:500W / Impedance: 50Ω
SWR:Less than 1.5 / connector:NP / Rated wind velocity:70m/sec.
Mast diameter Accepted:φ30-φ62

FDU-32

Dimensions (HxD):0.79 x 0.31m / Weight:5.90kg
Gain:3 to 6dBd / Max.power rating:500W / Impedance: 50Ω

SWR:Less than 1.5 / connector:NP / Rated wind velocity:70m/sec. Mast diameter Accepted:φ30-φ62

FDU-34

Dimensions (HxD):1.80 x 0.31m / Weight:8.17kg
Gain:6 to 9dBd / Max.power rating:500W / Impedance: 50Ω
SWR:Less than 1.5 / connector:NP / Rated wind velocity:70m/sec.
Mast diameter Accepted:φ30-φ62

FDVU-2S/FDVU-4S: Stack Transformer for FDV, FDU

FDVU-2S

Dimensions (HxD):54.5 x 7.0cm
Weight:1.1 kg
Mast diameter Accepted: φ30-φ62
Connector: NJ

FDVU-4S

Dimensions (HxD):54.5 x 7.0cm
Weight:1.2kg
Mast diameter Accepted: φ30-φ62
Connector: NJ

SRH770: Rod Antenna

Length:91cm (full length) / Weight:85g
Frequency:144/430MHz (2m/70cm)
120/150/300/450/800/900MHz receiving only
Impedance:50ohms
Connector:SMA-P
Type:1/2waveradialless(144MHz) , 2x 5/8 wave radialless (430MHz)

SRH775: Rod Antenna

Length:44cm (full length) / Weight:41g
Frequency:144/430MHz (2m/70cm)
120/150/300/450/800/900MHz receiving only
Gain:2.15dBi (430MHz)
Max. power rating:10W
Impedance:50Ω
Connector:SMA-P
Type:1/4wave(144MHz), 1/2wave(430MHz)

SRJ770: Rod Antenna

Length:92cm (full length) / Weight:86g
Frequency:144/430/1200MHz (2m/70cm/23cm)
300MHz receiving only
Impedance:50Ω
Connector:SMA-J
Type:1/2waveradialless　(144MHz) , 2x 5/8 wave radialless (430MHz)

SRJ775: Rod Antenna

Length:45cm (full length) / Weight:46g
Frequency:144/430MHz (2m/70cm)
120/150/300/450/800/900MHz receiving only
Gain:2.15dBi
Max. power rating:10W
Impedance:50Ω
Connector:SMA-J
Type:1/4wave(144MHz), 1/2wave (430MHz)

HCMast diameter Accepted: φ30-φ62
Turing-radius: Approx. 1.65m (Max)

HC400C2: Handy Antenna

Length:0.39m / Weight:31g
Frequency: 420-440MHz
Gain:3.15dBi / Max.power rating:20W / Impedance:50ohms
VSWR:Less than 1.5:1 / Connector:Motorola Inch screw type
Type:1/4 wave C-Load

SPM585: Magnet Base (with Cable)

Coaxial Cable: RG58A/U 5.0m
Connector: MJ-MP
Diameter: 111mm

VX50/N: 144/430MHz (2m/70cm) Base Antenna

Length:1.7m / Weight:0.85kg
Gain:4.5dBi (144MHz), 7.2dBi (430MHz)
Max.power rating:100W FM(Total)
Impedance:50Ω / SWR:Less than 1.5
Rated wind velocity:60m/sec.
Mast diameter Accepted: φ30-φ62
Connector:MJ/NJ
Type: 6/8 wave C-Load element 144MHz), 3 x 5/8 radialless (430MHz)
FRP outershell

SRH140DH [HANDY ANTENNA] :142MHz / 146MHz

Length:0.36m
Weight:15g
Impedance:50ohms
Connector:SMA-P
Type:1/4wave

DEE40M/S/KC: Earphone Microphone

[DEE40M]: Speaker φ3.5 Microphone φ2.5
[DEE40S]: φ3.5　4poles
[DEE40KC]: φ3.5　4poles
Code length: Approx. 75cm
Weight: 30g
IN-PUT earphone: 500mW (Max)
Impedance: 32Ω
Microphone: 2.2kΩ　ECM type

DSE30/S/KC: Earphone Microphone

[DSE30M]: Speaker φ3.5 Microphone φ2.5
[DSE30S]: φ3.5　4poles
[DSE30KC]: φ3.5　4poles
Code length: Approx. 75cm
Weight: 30g
IN-PUT earphone: 15mW (Max)
Impedance: 16Ω
Microphone: 2.2kΩ　ECM type

5DQ-Ⅱ（Radio Side）: Separation Cable

BC200N: 430 to 490MHz with Cutting Chart

Length:1.7m / Weight:0.9kg
Gain:6.5dB
Max.power rating:200W
Impedance:50ohms
VSWR:Less than 1.5
Rated wind velocity:60m/sec.
Mast diameter accepted:30-62φ
Connector:NJ
Type:omnidirectional 3×5/8λ,FRP outershell

HE47P05 / HE47M05/ HE47K05

[HHE47P05] φ3.5 straight
[HE47M05] φ3.5 L plug
[HE47K05] φ2.5 L plug

Weight: 9g / Code length: Twist Code 50cm
Frequency range:20Hz to 4500Hz
Earphone input:300mw(MAX)
Impedance:8Ω / Earphone: Magnetic earphone

SRH770S: 144/430MHz (2m/70cm)

Length:70cm / Weight:45g
Gain: 2.15dBi (144MHz), 4.5dBi (430MHz)
Impedance:50ohms
Max.power rating:10W FM
Connector:SMA-P
Type:3/8wave (144MHz), 3/4wave (430MHz)

MS900WMOD: Speaker Microphone

MS900WMOD: φ3.5 for Motorola GDR4200 and GDR4800
Weight:150g
Code length:1.5m (Max)
Speaker-PUT: 1000mW (Max)　
Impedance: 8Ω
Microphone: 2.2kΩ　condenser microphone
Microphone sensibility: -40±2dB
Remarks: Waterproof type

MIC11MOD: PTT switch & Microphone

MIC11MOD: For Motorola GDR4200 and GDR4800
Weight:40g
Code length:85cm
Earphone specification connected: φ2.5
Microphone sensibility: -55±5dB
Microphone: 2.2kΩ　ECM type
Recommend earphones Impedance : 32Ω
HE87K/HE77K/DEH7K/DEH17K/HE57K/HE27K/

HFV40 : Dipole Antenna

Element length:2.3m (one side)
Weight:Approx. 2.0kg
Frequency: 7.0-7.2 MHz
Max.power rating:200W (SSB), 70W
Impedance:50ohms
SWR:Less than 1.5 (at resonate frequency)
Mast diameter accepted:φ30-φ62 Connector:M-J
Turing-radius:Approx. 1.65m

MC203A: 430 to 470MHz with Cutting Chart

Length: 0.97-086m
Weight: 210g
Frequency: 430-470MHz
Max. power rating: 200W
Impedance: 50Ω
Gain: 5.5dBi
SWR:Less than 1.5
Connector: M-P
Type: 2 x 5/8 wave

MC203B: 460 to 490MHz with Cutting Chart

Length: 0.97-086m
Weight: 210g
Frequency: 460-490MHz
Max. power rating: 200W
Impedance: 50Ω
Gain: 5.5dBi
SWR:Less than 1.5
Connector: M-P
Type: 2 x 5/8 wave

RHM7350: Portable wide Band Long Type Antenna

Length:2.6m（Max）
Weight: 290g
Frequency: 7-30/50MHz
Max.power rating:130W (SSB)
Connector: M-P
Impedance: 50Ω
Type: 1/4wave reduced type (HF band), 1/4wave (50MHz band)
**Remarks: Antenna tuner is required.

F22H: 144-174MHz with cutting chart

Length:3.2m
Weight:1.3kg
Gain:6.7dB
Max.power rating:350W
Impedance:50Ω
VSWR:Less than 1.5
Rated wind velocity:50m/sec.
Mast diameter accepted:φ30-φ62
Connector:M-J
Type:omnidirectional 2 x 7/8 λ, FRP outershell

MF750: Slim FRP Mobile Antenna

Length: 1.18m
Weight: 185g
Frequency: 144/430MHz (2m/70cm)　
Gain: 3.0dBi (144MHz), 6.0dBi (430MHz)
Max. power rating: 60W (FM)
Impedance: 50Ω
Connector: MP
VSWR: Less than 1.5
Type: 1/2 wave C-load radialless (144MHz),
2x5/8 wave C-load radialless(430MHz)

MF350: Slim FRP Mobile Antenna

Length: 1.18m
Weight: 185g
Frequency: 351MHz
Gain: 5.15dBi
Max. power rating: 50W
Impedance: 50Ω
Connector: MP
VSWR: Less than 1.5
Type: 1/2 x 2 wave radialless

HE27M: Earphone

Code length: 75cm
Weight: 6g
Frequency: 20Hz – 20kHz
Power: 4mW (Max)
Impedance: 32Ω
Earphone: Magnetic earphone
Plug: φ3.5　straight plug

Z07M:ADHERED ANTENNA

Z10M:ADHERED ANTENNA

AS600:Tripod Mast Stand

AZ507FXH:Mobile Antenna
144/430MHz (2m/70cm)

SRH951S:HANDY ANTENNA
144/430/1200MHz (2m/70cm/23cm)
Air band/150/300/450/800/900MHz receiving only

SRJ701A:Handy Antenna
144/430MHz (2m/70cm)
Air band/150/300/450/800/900MHz receiving only

D220R:Discone Antenna
100 to 1600MHz for receiving
144/430/904/1200MHz for transmitting

Length:0.70m / Weight:360g
Gain:2.15dBi(144/904/1200MHz),3.4dBi(430MHz)
Impedance:50ohms
VSWR:Less than 1.5
Max.diameter:21.6cm
Connector:M-P
Type:1/2wave(144MHz),5/8wave(430MHz)

HE27K: Earphone

Code length: 75cm
Weight: 6g
Frequency: 20Hz – 20kHz
Power: 4mW (Max)
Impedance: 32Ω
Earphone: Magnetic earphone
Plug: φ2.5　straight plug

MIC10M/K/LS/S/ID/KD/VD:PTT switch & Microphone

[MIC10M]: 2 plugs for ICOM/Yaesu/ Standard/Alinco
[MIC10K]: 2 plugs for Kenwood
[MIC10LS]: 2 plugs slim type for ICOM
[MIC10S]: 1 plug waterproof for ICOM/Yaesu/Standard/Alinco
[MIC10ID]: Special plugs for ICOM
[MIC10KD]: Special plugs for Kenwood
[MIC10VD]: Special plugs for Yaesu/Standard
Weight: 40g
Code length: 85cm
Earphone specification connected: 2.5 mono・Impedance 32Ω
Microphone sensibility: -32±3dB
Microphone: 2.2kΩ　ECM type
Recommend earphones: HE27K/HE47K/HE57K/HE77K/HE87K/HE97/DEH7K/DEH17K
(The model numbers in blue charactors areφ2.5plug L type)
Those products are required to use with φ2.5 earphone.
They cannot be used themselves.

K413S

Trunk Lid / Hatchback Door Mount Antenna Bracket
3-axis adjustable/mount
Sliver version

K416S

Trunk Lid / Hatchback Door Mount Antenna Bracket
3-axis adjustable/mount
Sliver version

SRHF1439: Handy Antenna

Length: 40.5cm
Weight: 40g

Frequency: 139/399MHz Receiving only
Impedance: 50Ω
Connector: SMA-P
Type: 1/4wave(139MHz) 1/2wave radialless (399MHz)

MX62N: LPF:1.6-56MHz / HPF: 76-470MHz(76 to 120MHz for receiving only)

Dimensions:86Wx25Hx64Dmm
Weight:360g
Pass Band Frequency: LPF: 1.6-56MHz / HPF: 76-470MHz(76 to 120MHz receiving only)
Power: 1.6-56MHz 600W (PEP) ,140-150MHz 600W(PEP) ,430-470MHz 600W (PEP)
Insertion loss:1.6-56 MHz Less than 0.2dB
140-150MHz Less than 0.3dB
Impedance:50ohms
VSWR:Less than 1.2
Isolation: More than 50dB
Connector:Mix: SO-239
1.6-56MHz: PL259 /76-470MHz: N-P
Coaxial cable:5D-2V 35cm

HE97:2-WAY EARPHONE / Soft earplug type

Weight:12g (normal). 23g (Tube type)
Frequency:20Hz – 4500Hz
Power:300mW (max)
Impedance:8Ω
Earphone:Magnetic earphone
Plug:2.5mm Straight plug
Code length:1.0m

HFV330:Dipole Antenna

Element length: 2.53m (one side)
Turing-radius: Approx. 1.9m
Weight: Approx. 5.9kg
Frequency: 3.5-30MHz,3.5-25MHz (long element) / 21-30MHz (short element)
Max. power rating: 250W (SSB), 80W (CW, FM)
Impedance: 50Ω
SWR: Less than 1.5 (at resonate frequency)
Connector: M-J
Type: V dipole antenna
Mast diameter Accepted: φ38-φ60
Power supply Voltage (SDC-2): 12V300mA
Control cable: 15m
●ETK10 [Extension cable for HFV330]

Cable length: 10m (with both end connection connector)

HF30CL:10MHz band (10.110-10.150MHz)

Length: 2.2m
Weight: 590g
Frequency: 10MHz (30m)
Max. power rating: 200W (SSB), 70W (FM)
Impedance: 50Ω
SWR:　Less than 1.5
Connector: M-P
Type: 1/4 wave Center loading

AZ510FMH:144/430MHz (2m/70cm)

Length: 0.91m
Weight: 105g
Frequency: 144/430MHz (2m/70cm)
Gain: 2.15dBi (144MHz), 5.5dBi (430MHz)
Max. power rating:50W FM (Total)
Impedance: 50Ω
SWR:　Less than 1.5
Connector: M-P
Type: 1/2 wave radialless (144MHz), 2 x 5/8 wave (430MHz)
Remarks: Hard Flexible type

SS-AIR 1:Splitter for receiving only

Dimensions: 46(W) x 27(H) x 57(D) mm
Weight: 130g
Frequency: 1.6-400MHz / 1.0-1.3GHz
Isolation: More than 45dB
Insert loss: Less than 0.25dB (1.6-400MHz) /Less than 0.45dB (1.0-1.3GHz)
Impedance: 50Ω / Connector: MJ / VSWR: Less than 2.0

D555: Receiving Antenna

Length: 1.06m
Weight: 130g
Frequency: 120MHz air band /1090MHz Virtual radar (Receiving only)
Gain: 2.15dBi (120MHz), 5.5dBi (1090MHz)
Impedance: 50Ω / Connector: M-P
Type: 1/2 wave (120MHz), 2 x 5/8 wave (1090MHz)

EM15M/K/ID/L/S: Earphone Microphone

EM15M: 2 plugs for ICOM/STANDARD/ALINCO
EM15K: 2 plugs for KENWOOD
EM15ID: Special plug for ICOM
EM15L: 2 plugs for ICOM
EM15S: 1 plug waterproof for ICOM/ STANDARD/ALINCO
Weight: 35g
Code length: 1.9m (Max)
N-PUT earphone: 4mW (Max)
Impedance: 32Ω
Microphone: 2.2kΩ　ECM type
Microphone sensibility: -36±3dB

150MVE: TX 156 to 157MHz,RX 156 to 162.5MHz

Length:1.13m / Weight:0.63kg
Gain:2.15dBi / Max.power rating:50W / Impedance: 50Ω
SWR:Less than 1.5 / Rated wind velocity:45m/sec.
Mast diameter accepted:30-62φ / Connector:MJ / Type:1/2 wave GP

AM450: Portable Telescopic Antenna Mast

Length: approx. 1.4m (minimum) to approx. 4.5m (maximum)
Weight: Approx. 1.2kg
Pipe diameter: φ22mm (upper)-φ31mm (lower), 4 sections telescopic type
Maximum weight load: approx. 8kg (in perpendicular setting and calm)
Accessories: Stay rope 30m, Base bracket for coaxial connector, Fix bolt, Camera screws (all screws), Rock nut.

AM600: Portable Telescopic Antenna Mast

Length: approx. 1.6m (minimum) to approx. 6.0m (maximum)
Weight: Approx. 1.6kg
Pipe diameter: φ22mm (upper)-φ34mm (lower), 5 sections telescopic type
Maximum weight load: approx. 8kg (in perpendicular setting and calm)
Accessories: Stay rope 30m, Base bracket for coaxial connector, Fix bolt, Camera screws (all screws), Rock nut.

K44L: Bracket

Rooftop carrier/ Mirror stay mount antenna bracket
Heavy duty type
Tilt angle adjustable/mount bracket only
Mast accepted: 15-40mm

MR77SJ: 144/430MHz(2m/70cm)

Length:0.5m / Weight:400g
Gain:3.4dBi(430MHz) / Max.power rating:70W / Impedance: 50Ω
Coaxial cable:RG-58C/U 4m / Connector: SMA-J
Type: 1/4wave (144MHz), 5/8wave (430MHz)

SRJF40A: 144/430MHz(2m/70cm)
Air band/150/300/450/900MHz receiving only

Length:0.4m / Weight:40g
Max.power rating:10W / Impedance: 50Ω
Connector: SMA-J
Type: 1/4wave(144MHz) 1/2radialless (430MHz)

MR73SJ: 144/430MHz(2m/70cm)

Length:0.5m / Weight:80g
Gain:3.4dBi(430MHz) / Max.power rating:10W / Impedance: 50Ω
Coaxial cable:RG174/U 3m / Connector: SMA-J
Type: 1/4wave (144MHz), 5/8wave (430MHz)
Remarks: Tilt angle adjustable

MR75SJ: 144/430MHz(2m/70cm)

Length:0.5m / Weight:130g
Gain:3.4dBi(430MHz) / Max.power rating:35W
Impedance:50Ω / Type:1/4wave (144MHz), 5/8wave (430MHz)
Coaxial cable:LMR100 3m / Connector: SMA-J

SRJF10: 144/430MHz (2m/70cm)
Air band/150/300/450/800/900MHz receiving only

Length:7.2cm
Weight:18g
Max.power rating:6W / Impedance:50ohms
Connector:SMA-J / Type: 1/4wave

K416:Trunk Lid / Hatchback Door Mount Antenna Bracket

3-axis adjustable/mount

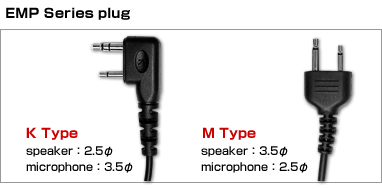

EMP300M/EMP300K: Head set for Handy Transceiver

Weight: 55g
Code length: 1.35m (Max)

Speaker (earphone) In-put: 200mW (Max) 64Ω
Microphone: 2.2kΩ　Condenser Mic
Microphone sensibility: -36±3dB

SRJ77CA : Handy Antenna

Length: 40.2cm
Weight: 40g
Frequency: 144/430MHz (/2m/70cm) Air band/150/300/450/800/900MHz receiving only
Max. power rating: 10W
Impedance: 50Ω
Connector: SMA-J

SMAJ-SMAJ : Conversion Connector

Connector : SMAJ-SMAJ
Center conductors are 24k gold plate.

BC103 : Wide Band Fixed Station Antenna

Length: 1.25m
Weight: 1.4kg
Frequency: 144-174MHz
Gain: 2.15-3.2dBi
Max. power rating: 300W
Impedance: 50Ω
SWR: Less than 2.0
Connector: M-J
Rated wind velocity: 60m/sec.
Mast diameter Accepted: φ30-φ62
Type: 1/2 wave – 5/8 wave

MC103A : Wide Band Mobile Antenna

Length: 1.51m
Weight: 430g
Frequency: 132-155MHz
Max. power rating: 200W
Impedance: 50Ω
SWR: Less than 2.0
Connector: M-P
Type: 3/4 wave

MC103B : Wide Band Mobile Antenna

Length: 1.41m
Weight: 390g
Frequency: 150-172MHz
Max. power rating: 200W
Impedance: 50Ω
SWR: Less than 2.0
Connector: M-P
Type: 3/4 wave

K413 : Braket

Trunk Lid / Hatchback Door Mount Antenna Bracket
3-axis adjustable/mount

1D05SR : Cable

Coaxial Cable: 1.5DS-EXL 0.5m
Connector: MJ-SMAP

1D05SR : Cable

Coaxial Cable: 1.5DS-EXL 1.0m
Connector: MJ-SMAP

EM14S :Clip Microphone & Earphone
1 plug waterproof type for ICOM/STANDARD/ALINCO

Weight: 30g / Code length: 1.9m (Max)
IN-PUT earphone: 4mW (Max)
Impedance: 32Ω
Microphone: 2.2kΩ　ECM type
Microphone sensibility: -36±3dB

RHM10 :Wide Band Portable Antenna

Length:0.5m – 1.77m / Weight:300g
Frequency: 7-430MHz / Max. power rating:130W (SSB)
Impedance:50ohms / Connector:M-P
Type:1/4wave reduced type (HF band), 1/4wave (50/144MHz band)
5/8wave (144/430MHz band)
**Do not use the RHM10 during driving a car.

M285: Mobile Antenna

Length: 1.25m
Weight: 180g

Frequency: 144-174MHz (with cutting chart)
Max. power rating: 200W
Gain: 3.4dBi
Impedance: 50Ω
SWR: Less than 1.5
Connector: M-P(FOS type)

Type: 5/8

HF20CL: Mobile Antenna

Length: 2.2m
Weight: 560g

Frequency: 14MHz band (14.0-14.35MHz)
Max. power rating: 200W (SSB), 70W (FM)
Impedance: 50Ω
SWR: Less than 1.5
Connector: M-P

Type: 1/4 wave Center loading

HF16CL: Mobile Antenna

Length: 2.2m
Weight: 555g

Frequency: 18MHz band (18.068-18.168MHz)
Max. power rating: 200W (SSB), 70W (FM)
Impedance: 50Ω
SWR: Less than 1.5
Connector: M-P

Type: 1/4 wave Center loading

HF15CL: Mobile Antenna

Length: 2.2m
Weight: 550g

Frequency: 21MHz band (21-21.45MHz)
Max. power rating: 200W (SSB), 70W (FM)
Impedance: 50Ω
SWR: Less than 1.5
Connector: M-P

Type: 1/4 wave Center loading

HF10CL: Mobile Antenna

Length: 2.2m
Weight:550g

Frequency: 28/29MHz band (28-29.7MHz)
Max. power rating: 200W (SSB), 70W (FM)
Impedance: 50Ω
SWR: Less than 1.5
Connector: M-P

Type: 1/4 wave Center loading

SRH103: Handy Antenna

Length: 4.5cm
Weight: 15g

Frequency: Air band (120/300MHz) Receiving only
Impedance: 50Ω
Connector: SMA-P
Type: 1/4wave

K550L: Bracket

Rooftop railing height accepted: Less than 28mm
Width accepted: Less than 75mm
**It cannot be used with the round pipe.

K707S : Bracket

Usable antenna specification：
Length: Less than 1.5 m
Weight: Less than 350g

Connector: MJ-SMAP
Diameter: 100m

HFVC8 : Optional coil for HFVC8

Frequency: 18MHz Band
Max. Power rating: 150W (SSB)
VSWR: Less than 15.

RHM8B：Portable Antenna

Length: 0.5m – 1.78m (Division length: 0.38m)
Weight: 285g
Frequency: 7-50MHz
Max. power rating:120W (SSB)
Connector: BNC-P
Type: 1/4wave reduced type (HF band), 1/4wave (50MHz band)

SDC1：Turing controller for SD330

Dimensions: 85(W)x 120(D)x 32(H)mm
Weight: 380g
Frequency: 3.5/7/10/14/18/21/24/28(29)/50MHz
Band Operation time:
3.5MHz→HOM→3.5MHz approx. 160 sec.
7MHz→HOM→7MHz approx. 50 sec.
14MHz→HOM→14MHz approx. 20sec.
*HOM –Operation standard position (Lowest position of the coil)
Power supply voltage & current: DC12V (9-14.5V) 200mA

BK45：Pipe Bracket

Weight: 700g
Pipe size: L type 450mm x 350mm φ32 (made of aluminum)
Usaable antenna specificaton
・Length: Less than 3.5m
・Weight: Less than 2.0kgs
Installation possibillity pipe size
・Circle pipe: φ22-φ66 mm
・Corner pipe: 62 x 50 mm

HE87M : Earphone(φ3.5mm, 2 plugs for ICOM, STANDARD, YAESU, STANDARD)
HE87K : Earphone(φ2.5mm, 2 plugs for Kenwood)

Weight:20g
Frequency:300Hz - 20kHz
IN-PUT earphone: 80mW (Max)
Impedance:32Ω / Code length: 50cm (Max)

HF80CL：3.5MHz band (3.5-3.8MHz) Mobile Antenna

Length:2.22m / Weight:590g
Frequency:3.5MHz band (3.5-3.8MHz)
Max.power rating:120W (SSB), 40W (FM)
Impedance:50Ω / VSWR:Less than 1.5

Connector: M-P / Type:1/4 wave center loading

HF40CL：7MHz band (7.0-7.2MHz) Mobile Antenna

Length:2.2m / Weight:590g
Frequency:7MHz band (7.0-7.2MHz)
Max.power rating:200W (SSB), 70W (FM)
Impedance:50Ω / VSWR:Less than 1.5

Connector: M-P / Type:1/4 wave center loading

HF6CL：50MHz band (50-54MHz)Mobile Antenna

Length:2.2m / Weight:590g
Frequency:50MHz band (50-54MHz)
Max.power rating:250W (SSB), 80W (FM)
Impedance:50Ω / VSWR:Less than 1.5
Gain: 2.15dBi / Connector: M-P
Type:1/2 wave Radialless Center loading

X700HN：144/430MHz(2m/70cm) Base Antenna

Length:7.2m / Weight:3.8Kg Radial length: 52cm
Frequency: 144/430MHz(2m/70cm)
Gain:9.3/13.0dB(144/430MHz) / Max.power rating:200W (Total)
Impedance:50Ω / VSWR: Less than 1.5
Radial length: 52cm / Rated wind velocity:40m/sec.
Connector: NJ / Mast Diameter accepted:30-62mm
Type:4x5/8wave C-Load (144MHz), 11x5/8wave C-Load (430MHz)

MS900WID/KD/VD :Speaker Microphone

■MS900WID/Special plug for ICOM IC-DPR5
■MS900WKD/Special plug for KENWOOD TPZ-D503
■MS900WVD/Special plug for VERTEX STANDARD VXD-10

Weight:150g
Speaker-PUT: 1W (Max)
Impedance: 8Ω
Microphone: 2.2kΩ ECM type
Microphone sensibility: -40±2dB
Code length: 1.5m (Max)

SRH920:50/144/430MHz (6m/2m/70cm) Handy Antenna

Length:109mm / Weight:29g
Frequency:50/144/430MHz (6m/2m/70cm)
Max. power rating:6W
Impedance:50Ω
Connector:SMA-P
Type:1/4wave,150/300/450/800/900MHz for receiving only

DP-KE137:Receiving Antenna for Weather Satellite NOAA & ACARS

Length:1.0m / Weight:1.1Kg
Frequency: 137MHz
Mast Diameter accepted: 25-62mm
Connector: MJ

MX2000N: HF 50/144/430MHz

Dimensions:86Wx25Hx64Dmm / Weight:360g
Pass Band Frequency:LPF/1.6 to 60MHz,BPF/110 to 170MHz,HPF/300 to 950MHz
Power :1.6-60MHz 800W (PEP),110-170MHz 800W (PEP),300-950MHz 500W (PEP)
Insertion Loss:1.6-60MHz Less than 0.15dB,110-170MHz Less than 0.2dB,300-950MHz Less than 0.25dB
Isolation:More than 60dB(In amateur band)
Impedance:50ohms
VSWR: Less than 1.2 (In amateur band)
Connector:MIX SO-239,50MHz PL-259,144MHz PL-259,430MHz NP
Coaxial cable:5D-2VS(35cm)

MS800V：Speaker Microphone

[MS800V] 1 plug L type for ICOM,YAESU,STANDARD
Weight:105g / Code length:2.0m (Max)
Speaker-PUT:500mW (Max) / Impedance:8Ω
Microphone:2.2kΩ ECM type
Microphone sensibility:-40±2dB

MDC730HX (7-30MHz): Replacement coil for MD200

Weight:approx. 700g
Max. Power rating:200W (SSB), 70W (FM, CW)
This coil has to be used with the MD200 whip element.
It cannot be used by itself.

MR75M：144/430MHz(2m/70cm)

Length:0.5m / Weight:130g
Gain:3.4dBi(430MHz) / Max.power rating:35W
Impedance:50Ω / Type:1/4wave (144MHz), 5/8wave (430MHz)
Coaxial cable:LMR100 3m
Connector: M-P

MS800L：Speaker Microphone

[MS800L] 2 plugs L type for ICOM
Weight:105g / Code length:2.0m (Max)
Speaker-PUT:500mW (Max) / Impedance:8Ω
Microphone:2.2kΩ ECM type
Microphone sensibility:-40±2dB

EM14L：Clip microphone & Earphone

[EM14L] 2 plugs L type for ICOM
Weight:30g / Code length:1.9m (Max)
IN-PUT earphone:4mW (Max)
Impedance:32Ω / Microphone:2.2kΩ ECM type
Microphone sensibility:-36±3dB

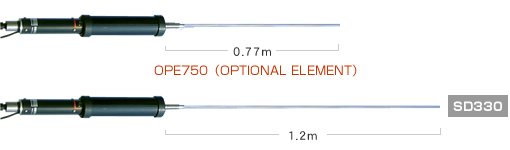

OPE750：Optional element for SD330

Element Length: 770mm
Frequency: 7-50MHz
SD330 can be used from 3-30MHz.
If using OPE750 instead of normal element, it can be used from 7-50MHz. OPE750 is 430mm shorter than normal element.
Changing the element is very easy.
It is need to loosen set screw only.

MR75B/MR75S：144/430MHz(2m/70cm)

Length:0.5m / Weight:130g
Gain:3.4dBi(430MHz) / Max.power rating:35W
Impedance:50Ω / Type:1/4wave (144MHz), 5/8wave (430MHz)
Coaxial cable:LMR100 3m
Connector: BNC-P(MR75B),SMA-P(MR75S)

D3000N：(25-3000MHz for receiving) (50/144/430/904/1200MHz for transmitting)

Length:1.7m / Weight:1kg
Max.diameter:84cm
Impedance:50Ω / Connector:NJ
Mast diameter accepted:φ25-50
Rated wind velocity:40m/sec.
Max power rating:20W(50MHz),200W(more than 144MHz)
Recommend cable:Less than 10D-2V(not including)

K3000：Strong Three-point Magnet Antenna Base

Usable antenna specification
Length:Less than 1.7m
Weight:Less than 1.0kg (If the antennas have the loading coil, the coils should be in the lower parts)
Product weight: 1.5kg

SD330：3.5-30MHz Screwdriver Antenna

Length:Approx. 1.85m / Weight:Approx. 1.1kg
Frequency:3.5-30MHz / Max. power rating:200W (SSB)
Impedance: 50Ω / SWR:Less than 2.0
Connector:M-P / Type:1/4 wave center loading
Power supply voltage & current:DC 12V 100mA
Up-down time:aprrox. 50 sec.(3.5→30MHz), aprrox. 20 sec. (7→30MHz)

RHF10：Handy Antenna
144/430MHz (2m/70cm) Air band/150/300/450/800/900MHz receiving only

Length:75mm / Weight:20g
Frequency:144/430MHz (2m/70cm)
Air band/150/300/450/800/900MHz receiving only
Max.power rating:6W
Impedance:50ohms / Connector:BNC-J
Type:1/4 wave

SRHF10：Handy Antenna
144/430MHz (2m/70cm) Air band/150/300/450/800/900MHz receiving only

Length:75mm / Weight:20g
Frequency:144/430MHz (2m/70cm)
Air band/150/300/450/800/900MHz receiving only
Max.power rating:6W
Impedance:50ohms / Connector:SMA-P
Type:1/4 wave

SRH1：Handy Antenna
144MHz (2m) Air band/150/300/450MHz receiving only

Length:25mm / Weight:10g
Frequency:144MHz (2m) Air band/150/300/450MHz receiving only
Max.power rating:5W
Impedance:50ohms / Connector:SMA-P
Type:1/4 wave

150MVHS：(TX) 156-157MHz / (RX) 156-162.5MHz

Length:0.99m / Weight:260g
Frequency: (TX) 156-157MHz / (RX) 156-162.5MHz
Gain:2.15dBi / Max.power rating:50W
Impedance:50ohms / SWR:Less than 1.5 (TX)
Connector:SMA-P (with 3D-2V 5m)
Rated wind velocity:40m/sec. / Type:1/2 wave sleeve type
Recommend bracket:CRM/KCR/CRB/CLB

AZ910:50/144/430MHz (6m/2m/70cm)

Length:0.95m / Weight:120g
Gain:2.15dBi (144MHz), 5.5dBi (430MHz) / Max.power rating:50W FM (Total)
Impedance:50ohms / VSWR:Less than 1.5 / Connector:M-P
Type: 1/4wave（51〜52MHz FM), 1/2wave radialless (144MHz), 2x5/8wave radialless (430MHz)

DL50N：DC-1500 MHz

Dimensions:φ30x75mm
Frequency range:DC-1500 MHz
Impedance:50Ω VSWR: Less than 1.15 (DC-1GHz), Less than 1.2 (1-1.3GHz) Less than 1.3 (1.3-1.5GHz)
Connector:N-P
Power rating:15W (continuous), 20W (5 minimums on, 5 minimums off),
50W (1 minimums on, 3 minimums off), 100W (30 seconds on, 3 minimums off)
Remarks: The replacement of DL30N

MS900WM/WK/WS：Speaker-Microphone

MS900WM:2 plugs type for ICOM, STANDARD, YAESU, ALINCO
MS900WK:2 plugs type for Kenwood
MS900WS:1 plug type for STANDARD, ALINCO
Weight:150g / Code length:1.5m (Max)
Speaker IN-PUT:1W (Max) / Impedance: 8Ω / Microphone: 2.2kΩ　ECM type Microphone sensibility: -40±2dB
Remarks: Waterproof type

AZ504FXH:144/430MHz(2m/70cm)

Length:0.4m / Weight:65g
Gain:2.15dBi(144MHz) / Max.power rating:50W FM (Total)
Impedance:50ohms / VSWR:Less than 1.5 / Connector:M-P
Type:1/4wave (144MHz), 1/2wave radialless (430MHz)

SE6A: 50MHz (adjustable range: 50-54MHz)

Length:2.5m / Weight:2.2kg
Gain:2.15dB / Max.power rating:200W (SSB),60W (FM)
Impedance:50ohms / VSWR:Less than 1.5 / Rated wind velocity:60m/sec.
Mast diameter accepted:φ25-φ100 / Connector:MJ
Type:1/2 wave radialless

BC205:Base Antenna

Length:2.9m / Radial Length:19cm
Weight:1.15kg
Frequency:430-490MHz / Gain:8.5dBi
Max. power rating:200W / Impedance:50Ω / SWR:Less than 1.5
Connector:M-J / Rated wind velocity:50m/sec.
Mast diameter Accepted:φ30-φ62

A1430S7:Beam Antenna

Boom length:1.25m / Element length:1.02m (Max)
Weight:0.95kgs
Frequency:144/430MHz (2m/70cm)
Gain:7.5dBi (144MHz), 9.3dBi (430MHz)
Max. power rating:100W (FM) / Impedance:50Ω / SWR:Less than 1.5

Connector:MJ / Rated wind velocity:35m/sec.
Mast diameter Accepted:φ25-φ62 / Wind surface area:0.17㎡
Type:3-elements beam antenna (144MHz) / 5-elements beam antenna (430MHz)
FB ration:More than 11.5dB (144MHz), More than 8.0dB (430MHz)
Turing radius:Approx. 1.2m

NR2000N:Mobile antenna

Length:0.99m / Weight:300g
Frequency:144/430/1200MHz (2m/70cm/23cm)
Gain:3.15dB (144MHz), 6.3dB (430MHz), 9.7dB (1200MHz)
Max. power rating:100W (144/430MHz), 50W (1200MHz)
Impedance:50Ω / SWR:Less than 1.5 / Connector:N-P
Type:C-Load radialless gain whip (144MHz), 2x 5/8 wave C-Load phased element radialless gain whip (430MHz), 5 x 5/8 wave C-Load phased element radialless gain whip (1200MHz)

AZ505N:Mobile antenna

Length:0.47m / Weight:75g
Frequency:144/430MHz (2m/70cm) / Gain:3.8dBi (430MHz)
Max. power rating:50W FM (Total) / Impedance:50Ω / SWR:Less than 1.5
Connector:N-P / Type:1/4wave (144MHz), 6/8wave C-Load radialless (430MHz)

AZ510N:Mobile antenna

Length:0.95m / Weight:120g
Frequency:144/430MHz (2m/70cm) / Gain:2.15dBi (144MHz), 5.5dBi (430MHz)
Max. power rating:50W FM (Total) / Impedance:50Ω / SWR:Less than 1.5
Connector:N-P / Type:1/2wave radialless (144MHz), 2 x 5/8wave radialless (430MHz)

HFV8040: Dipole Antenna

Length:Approx. 10.2m / Turing-radius:Approx. 3.6m
Weight:Approx. 7.0kg
Frequency:3.500-3.805 MHz / 7.00-7.20 MHz
Max. power rating:300W SSB, 100W (FM/CW)
Impedance:50Ω
SWR:Less than 1.5 (at resonate frequency)
Connector:M-J
Wind surface area:0.35㎡ / Rated wind velocity:35m/sec.
Type:Dual band V dipole antenna / Mast diameter Accepted:φ30-φ62

EM14M/K/ID: Clip microphone & Earphone
EM14M:2 plugs type for ICOM, STANDARD, ALINCO
EM14K:2 plugs type for Kenwood
EM14ID:Special plug for ICOM

Weight:30g / Code length:1.9m (Max)
IN-PUT earphone:4mW (Max) / Impedance:32Ω
Microphone:2.2kΩ ECM type / Microphone sensibility:-36±3dB

HE77M/K:Earphone
HE77M:φ3.5mm, 2 plugs for ICOM, STANDARD, YAESU, ALINCO
HE77K:φ2.6mm, 2 plugs for KENWOOD

Weight:20g / Code length:1.1m (Max)
Frequency:300Hz-20kHz
IN-PUT earphone:40mW (Max) / Impedance:32Ω
